New KT200II ECU Programmer ECU/TCU programmer tool

 KT200 II added Protocols.



KT200II ECU Programmer Highlight:

New protocols have been added, and more and more will be added frequently in the future.

Fixed the automatic checksum problem of the first generation KT200, and the reading and writing efficiency has been greatly improved.

Many new virtual files have been added to the server.

Strengthened the protection of ECU, and will prompt you immediately if an operation error is made.

Optimized server access efficiency.

OBD reading and writing is stable.

Support DELPHI DCM7.24 ECU

Can work with htprog too

New automatic function:Tricore Clone

KT200II Offline Upgrade ECU Protocols



KT200II Free Download:

KT200II Software(Offline)



KT200II Software(Online)



KT200II Functions:

DTC Remove

immo off

Adblue off

DPF off

EGR off

Adiust the instrument

chip tuning

ECU data modifications

Full range of services of ECU(one-on-one remote)



ECUHELP KT200II Functions

What is ECU service?



ECU service Includes 2 major items:

* Chip tuning

Chip tuning is to improve engine performance by modifying the data read out by the equipment The data is divided into Stage 1 . Stage 2 and Stage 3



*ECU maintenance.

ECU maintenance data is to repair software errors in the ECU and some identity data of the ECU by modifying the data read by the device. We provide the following items: DTC code Removal, EGR & DPF Removal, IMMO OFF, releasing speed limit, mileage correction, Ho start or Cold Start Vmax, and so on





KT200II ECU Programmer Product contents:

*Hardware

*Software

*Auto version: Car OBD, Truck OBD, Full System, BDM/JTAG, TOOL BOOT Bench Mode, TCU Gear

*Full configuration version: Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike 0BD.Full System, BDM/JTAG, TOOL BOOT, Bench Mode, TCU Gear,

*Increaseable license: Tractor OBD, Boat OBD, Motorbike OBD, TCU Gear



NEW AUTOMATIC FUNCTION: TRICORE CLONE Added automation to clone the following control units with OTP zone adaptation and password:

√ FCA EDC17CP27

√ HYUNDAI / KIA MED17.9.8

√ IVECO EDC17 C69

√ JAGUAR MEDC17.9

√ JAGUAR EDC17CP11

√ LAND ROVER MEDC17.9

√ LAND ROVER EDC17CP11

√ SUZUKI MED17.9.63

√ TOYOTA MED17.9.52



NEW FULL SYSTEMS FOR DELCO OPEL / CHEVROLET / GM ECUs:



We have added to the list of DELCO bench protocols already present, also the complete management of the control units mounted on OPEL / CHEVROLET / GM

cars: DELCO E38 DELCO E67 DELCO E84 DELCO E92

The possible operations are: Micro + EEPROM reading Micro + EEPROM writing Recovery Checksums.



 NEW FULL SYSTEM DRIVERS FOR BOSCH TCU ECUs:



6L45 6L50 6L80 6L90

Mounted on cars:

Cadillac, Chevrolet, Holden, GM, GMC, Hummer, Pontiac.

Micro + EEPROM reading

Micro + EEPROM writing

Recovery



NEW FULL SYSTEM DRIVER FOR MARELLI 8GMC ECU:



We have added complete management of the engine control unit mounted on Fiat / Abarth:

MARELLI 8GMC

The possible operations are:

Micro + EEPROM reading

Micro + EEPROM writing

Recovery

Checksums



Top Reason to Choose KT200II ECU Programmer:



KT200 ll ECU Programmer is a complete tool for reading and programming engine control units via OBD and via the Boot mode and Jtag systems. Full system and Bench mode are also available. A unique solution for the mechanics. TCU package for automatic transmission is available.

1.KT200 ll allows serial communication with the Engine and Automatic transmission control units via the OBD diagnostic socket

2. It also allows communication in BDM and JTAG, BOOT MODE, BENCH MODE (or Service mode) FULL SYSTEM via pinout
3. Professional software for reading and programming the control units of:

CAR TRUCK MOTORBIKE TRACTOR BOAT

* Additional TCU package available for Automatic Transmissions



Here are some examples of KT200 II ECU Programmer Multiple connections:

KT200



KT200

KT200



KT200

KT200

KT200 ECU Programmer Upgrade to KT200II, Click here





KT200II Parameters:

Compatible operating systems: Windows 7. Widows 8/8.1.Widows 10, Windows 11



Minimum recommended requirements: CPU>2.5 GHz (lntel i5,7) RAM 8GB



Package: 55*35*25cm,2.5kg



KT200II Language: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Czech, Romanian, Turkish

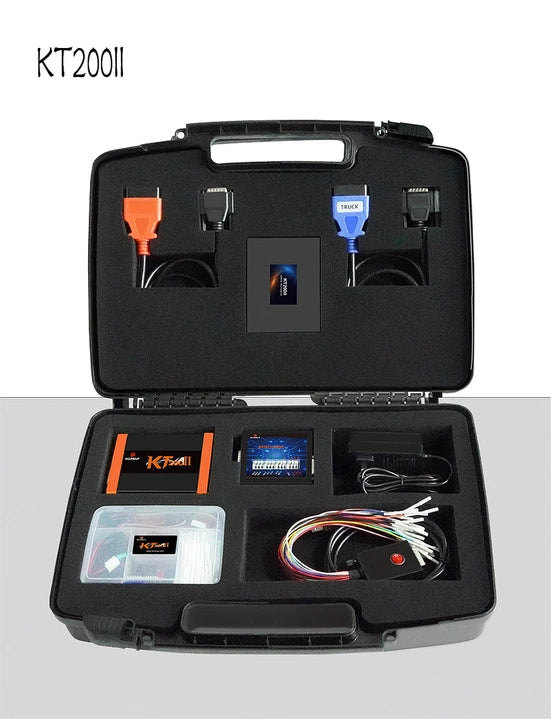

KT200II Auto Version Package Includes:

1pc x Master

1pc x BENCH box

2pcs x OBD wires

1pc x pinout line

4pcs x BOM adapters

3pcs x Transfer cables

4pcs x Power wire

1pc x Set of resistors

4pcs x Adapter plugs

5pcs x Power adapters
