ECUhelp tool

KT200 ECU Programmer ChipTuningKit KT200 ECU/TCU programmer tool

KT200 ECU Programmer ChipTuningKit KT200 ECU/TCU programmer tool

Regular price $519.00 USD
Regular price $580.00 USD Sale price $519.00 USD
Sale Sold out
Type

KT200 ECU Programmer Full Version Supports Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike OBD, Full System, BDM/JTAG, TOOL BOOT, Bench Mode, TCU Gear.

2023.02.01 ECUHELP KT200 ECU Programmer Full Version for Car Truck Tractor Boat Motorbike with Suitcase
Free Download

Software version 2023
Free Download KT200 02/01/2023 Software Online
Free Download KT200 22.12.10 Software
KT200 ECU Programmer Support ECU List
KT200 ECU Programmer Support TCU List
KT200 Wiring Diagram
ECUHELP KT200 Full Version Highlights

  • Work in online mode, please ensure a stable internet connection.
  • KT200 Full version is optional to add one extra Offline Dongle, so you can use it in offline mode.
  • KT200 Multi-language: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Czech, Romanian, Turkish.
  • No need to register and activate.
  • Computer Limitation: No limited, compatible with any pc(no limit volume of PC)
  • Operating system: Windows 7, Windows 8/8.1, Windows 10, Windows 11. Minimum Recommended Requirements:  CPU > 2.5 GHz (Intel i5, i7), RAM > 8GB
  • Software Update: Free Update Online. No Annual Subscription
  • Get free VR files and Demos files (Get free VR file and DEMO in this ECUHelp V3.0)
    KT200 ECU Programmer Full Version Function:
  • Read and write ECU data, read it in BIN unencrypted format, you can modify the data arbitrarily, you can clone ECU and use it as ECU service, the master is a personal version, you can only use it yourself, cannot unlock data for the slave.
  • KT200 ECU programmer software allows you to forcibly write (forcible clone) without checksumming and supports forcibly reading and writing unknown ECUs with supported chip models.
  • ECU maintenance, Chip tuning, DTC code Removal, and professional reading and writing equipment cover 99% of the models in the market.
  • Support Volkswagen Audi clone (local operation without sending data to manufacturers)
  • KT200 Full Read and Write TCU(MICRO + EEPROM): TCU CLONING and TCU CODING FUNCTIONS
  • KT200 ECU Programmer covers up to 5400 ECU, and over 500 TCU.
  • Support Audi/VW ECU Clone via Bench Mode pinout.
  • Bosch EDC17, MED17/ME17, and SIEMENS Pcr2.1(with Pinout also unlocking possibility) read and write in Bench Mode.

KT200 Full Version Coverage:
KT200 Full Version Software includes 10 licenses: Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike OBD, Full System, BDM/JTAG, TOOL BOOT, Bench Mode, TCU Gearbox.

undefined

​​​​​ECU Brand Coverage:
For Bosch, Marelli, Siemens, Ford, Delphi, Denso, Transtron, Adem, Delco, Continental,Motorola, Valeo, Sagem,Johnson Valeo,Visteon,Visteon Fomoco,Phoenix,Temic
TemicDeutz, SISU, Mitsubishi, Siemens Continental, Visteon Fomoco,TRW,Temic,Hitachi, Trionic, Visteon,TRW,Mems, Lucas.
Car:
Abarth, Alfa Romeo, Aston Martin, Audi, Baic, Belarus, Bentley, BMW,Chery, Chevrolet, Chrysler, Citroen, Corvette, Cummins, Cupra, Dacia, Daewoo, Deutz,Dodge,Doosan, DR,Effedi,Faw Jiefang,Fendt
 Ferrari, Ferrari - MaseratiFiat Alfa Lancia FCA, Fiat, Ford, Ford - Jaguar, Ford – Mazda, Ford – PSA, Ford - PSA - Volvo, Ford – Volvo, Geely, GM, GM-Opel, GMC, Great Wall, GWM, Hino, Honda, Hummer, Hyundai, Kia, Infini, Isuzu,Iran Khodro IKCO,Iveco, Jac, Jaguar, Jeep, Jeep - Chrysler, Kia, Kia - Ssangyong, Ktm, Lada,Lamborghini, Lancia, Land rover,  Land rover FreelanderLDV, Lexus, Mahindra, Man, Maserati, Mazda, MC Laren, Mercedes Benz, MG, Mini, Mitsubishi, Nissan, Opel, Opel GM, Peugeot, Porsche, PSA,  Renault,  Rolls Royce, Rotax, Rover, Rover MG, Saab, Same, Skoda, Smart, Ssang Yong, Subaru,Suzuki, Tata, Toyota, UAZ, VAG, Volkswagen, Volvo, XCMG.
***Covering a full range of cars from Europe, Germany, France, Italia, Japanese, American, and Chinese models.
Truck:
Astra, Bugatti, Caterpillar, Claas, DAF, Deutz, Faw, Fendt, Fergusson, Ford Transit, Hino, International, Isuzu, Iveco,Iveco Daily, Iveco Stralis, New Holland truck, Iveco Tector - New Hollan truck, Iveco Tector - New Hollan truck, Jac, Kamaz, Kia, King Long,  King Long Bus,Landini, Mack, MAN, Massey Ferguson, MC Cormic, New Holland, Nissan, Renault,  Renault – Volvo
Renault Mascott, Scania, Seat,  Shaanxi,Shacman, Sinotruck, Sisu,Steyr, Still, Thaco, Valtra,Volvo Truck.
Tractor:
AFT, Agco, Agrale, Agrifac, Artec, Axial-Flow, BCS, Bobcat, Bravo, Carraro, Caterpillar, Challenger, Claas, Deutz, Deutz Fahr, Dieci, Fendt, Gehl, Grim, Guaresi, JCB, Jhon deere, Kioti, Komatsu, Kramer, Kubota ,Lamborghini, Landini, Lindner, Massey Ferguson, MCCormik, Merlo, New Holland, Oxbo, Same, Sgariboldi, Supertino, Tecnoma,Valtra, Valtra Tractor, XCMG, Yanmar.
Excavator:
Case, Bobcat, Doosan, Hitachi, Steyr,
Motorbike:
Aprilia, Benelli, BMW Moto, CF Moto, Derbi, Ducati, Gilera, Harley Davidson, Indian Motorcycle, Kawasaki, KTM, Moto Guzzi, MV Agusta, Piaggio, Royal Enfield, Suzuki,Yamaha
Marine:
Iveco,Sea Doo, SISU Engine, Volvo Penta, Yanmar
Here take some ECU types that KT200 support for examples:

Full Read And Write Via Pin Out in Bench Mode:
BOSCH EDC7
BOSCH EDC16
BOSCH ME9 / MED9
BOSCH MD1
BOSCH MG1
-FREESCALESPC5777
-AURIXTC29x
-STSPC58
BOSCH EDC17
BOSCH MED17 / ME17
SIEMEN SPCR2.1
(Unlocking also possible via pinout)

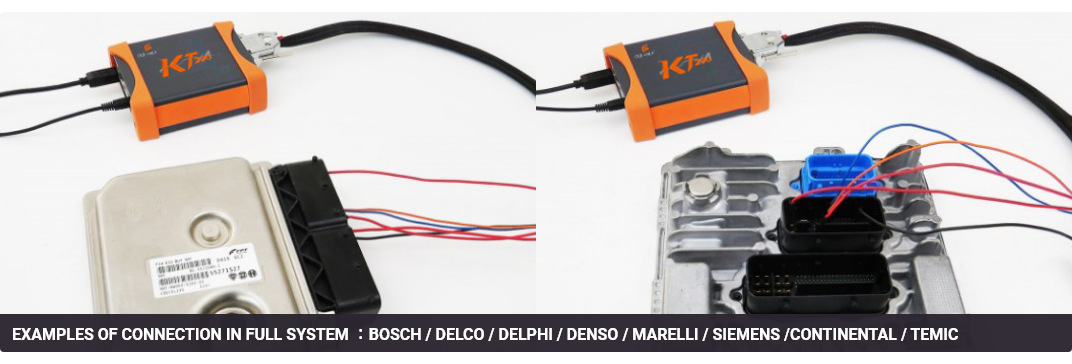

Full System Via Pin Out (Micro / Flash + EEPROM)of ECUs:
BOSCH
CONTINENTAL
DELCO
DENSO
MARELLI
SIEMENS
TEMIC
TEMIC

BDM EJTAG Modes For:
BDM MPC55x
BDM MPC56x
BDM MC32 / ZC32
BDM HC12 / S12x
JTAG NEXUS MPC / SPC56xx
JTAG NEXUS MPC55xx


JTAG RENESAS:
SH7055
SH7058
SH7059
SH7251
SH72543
SH72544
JTAG NEC76F00xx
76F0038AGD
76F0038GD
76F0039AGD
76F0039GD
76F0040GD
76F0070
76F0070
76F0085

BOOT MODEC16729Fxxx:
BOOT MODE ST K-LINE / RX-TX / CAN
ST10F168
ST10F269
ST10F273
ST10F275
ST10F276
ST10F276
ST10F280
ST10F296


BOOT Mode Tricore for micro:
TC1724
TC1728
TC1738
TC1738
TC1762
TC1766
TC1767
TC1782
TC1791
TC1792
TC1793
TC1793
TC1796
TC1797

BOOT Mode Renesas:
SH7052
SH7054
SH7055
SH7055
SH7058
SH7059
SH7251
SH72543
SH72544

BOOT Mode Mitsubishi:
MH7202
MH7203
MH8102F
MH8105F
MH8106F
MH8202
MH8206F
MH8301F
MH8301F
MH8304F
MH8405F

BOOT BAM System MOTOROLA:
SPC5674
SPC5777
-BOOT MODE Fujitsu
-BOOT MODE Hitachi

undefined
Ecuhelp KT200 2023 software update(02/01/2023 ):
1. Fixed the bug that the software functions were not synchronize.
2. Optimized server connection time, high speed and convenience.
3. Fixed the problem that some models are prone to error messages when reading and writing in bench model.For example, EDC17 series.
4. Optimized tool checksum issues (except EDC17 series)
5. Optimized the full system function in the software function.
6. Shortened the read and write process time, more quickly.
7. Fixed the TCU response speed, some models are prone to errors in the reading and writing process.
undefined
How To Install KT200 New Software V12.10?
Step 1: Download the kt200 service and installation package, Unpack the packages and complete the installation.
Step 2: Connect the device, open the  "Device manager" in your computer and manually install the device driver. After completion, open the kt200 service
Step 3. Click " download software" in kt200 service to install the KT200 work software, it will automatically update the newest version, and wait for the installation.
Step 4. Click the "Wiring diagram "to download (this has all the wiring picture the device supported), and it will automatically download and complete the installation.
Step 5. After completing the software download, You can open the software normally. And after downloading the Wiring diagram, you can do the ecu work normally.
Step 6. When the software cannot be opened, you can click the "Diagnosis" button in KT200 service software first for detection.
Notice:
1. Please close the anti-virus program before you run the KT200 software, it may incorrectly identify the software as harmful and break it.
2. For KT200 onlin version, please connect to the Internet to work with KT200 software.

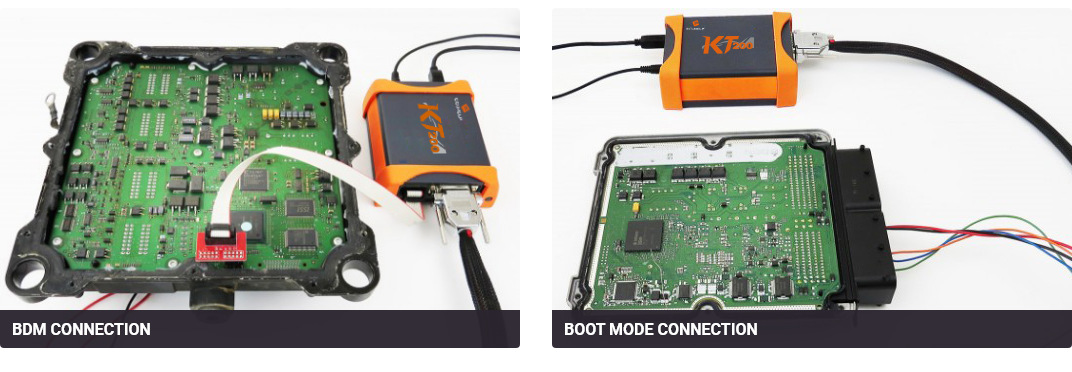

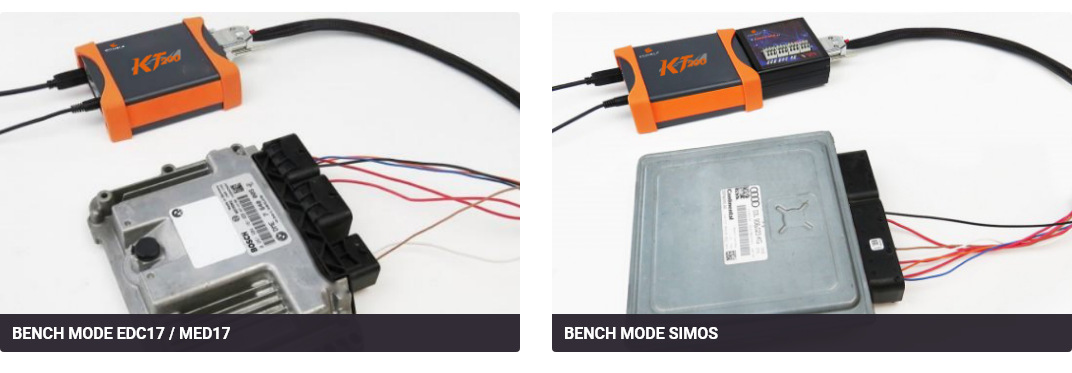

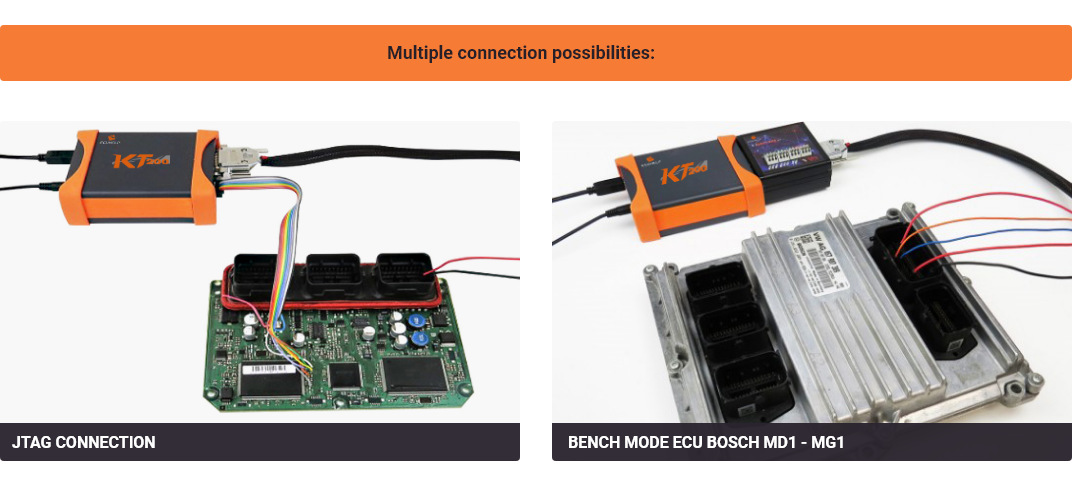

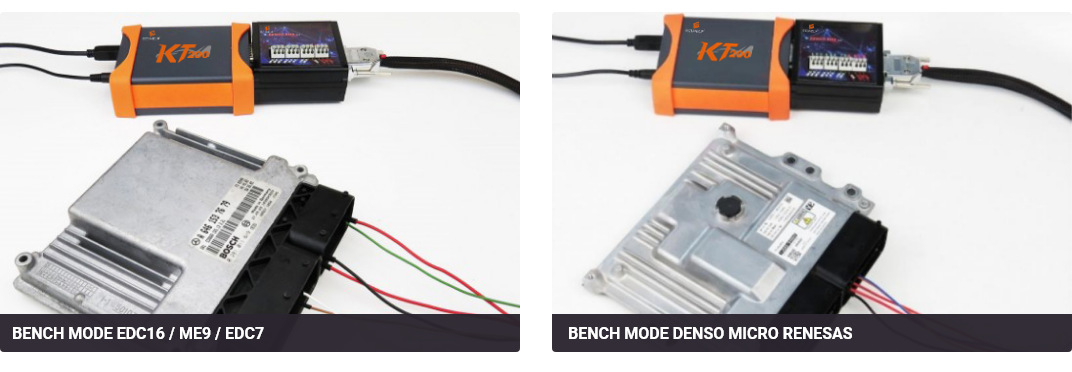

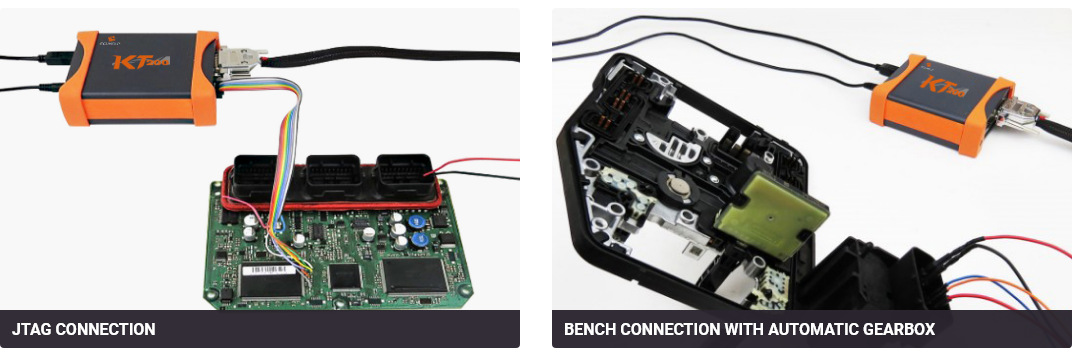

KT200 ECU Programmer Multiple Connections
undefined

undefined

undefined

undefined

undefined

undefined

ECUHELP KT200 Full Version Package Includes:
1pc x Master
1pc x BENCH box
2pcs x OBD wires
1pc x pinout line
4pcs x BOM adapters
3pcs x Transfer cables
4pcs x Power wire
1pc x Set of resistors
4pcs x Adapter plugs
5pcs x Power adapters
