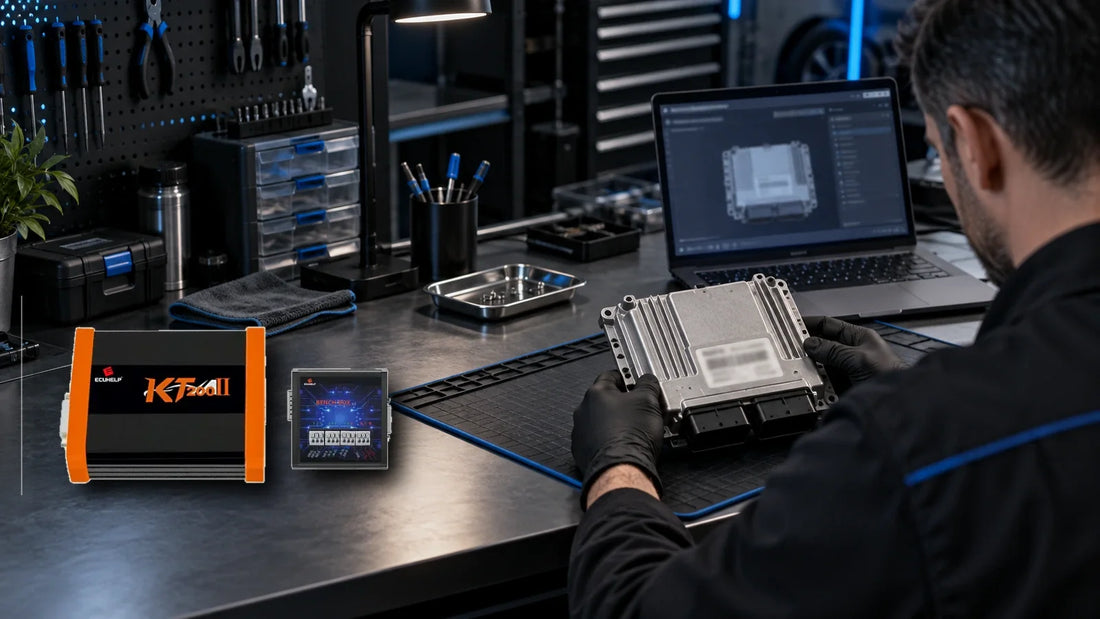

Owner-supplied KT200II main unit and Bench Box composited beside a generic ECU in a conceptual identification scene; not a test photo or wiring reference.

KT200II BMW MEVD17.2.5 Bench: What the Reported Case Proves

Conditional answer: A seller-hosted case dated 10 May 2026 reports KT200II bench reading and writing on a BMW F30 320iED with an N13 engine, Bosch MEVD17.2.5 and TC1797. A separate seller-hosted customer review also reports MEVD17.2.5 bench read/write and checksum completion. Together they show that this configuration has been reported, but they do not guarantee support for every MEVD17.2.5 hardware or software revision, prove a recovery path, or replace verification in the currently installed KT200II software.

Prepared and reviewed: 16 September 2026.

Scope: Evidence assessment and pre-job identification for an authorized BMW MEVD17.2.5 bench operation. This article does not reproduce a pinout, wiring diagram, password procedure, immobilizer method or calibration instruction.

Editorial responsibility: Prepared by the ECU Tool Store Editorial Team from the public sources below. ECU Tool Store did not independently perform the reported vehicle job, inspect the ECU or validate the timing claims.

What evidence is available?

Source What it reports Evidence limit
KT200.org case, 10 May 2026 BMW F30 320iED, N13, Bosch MEVD17.2.5, TC1797, bench read and write with KT200II. Seller-hosted single case. It does not expose every hardware/software identifier or establish universal compatibility.
ECUHELP product-review page, 10 October 2025 A customer reports BMW MEVD17.2.5 bench read/write and checksum completion. Seller-hosted user statement, not an independent controlled test and not a match for an unknown ECU revision.
KT200II compatibility guide Advises verification by vehicle, ECU, hardware/software identifiers and connection mode. Vendor-controlled general guidance. The live database and installed software remain time-sensitive.
ECU Tool Store No independent MEVD17.2.5 job is claimed for this article. The article can assess evidence and planning steps, not certify the ECU on a reader's bench.

The seller case also lists approximate read and write times. Those numbers describe one reported setup and should not be used as a workshop promise. File type, interface state, computer performance, server availability, memory operation and ECU revision can change duration. A long operation is not automatically a failure, and a short one is not proof of a complete backup.

MEVD17.2.5 on the housing is not enough

An ECU family name groups related controllers; it does not prove identical memory, processor, security, protocol or software behavior. Before selecting a protocol, record the vehicle year and exact model, engine designation, transmission context, full ECU label, Bosch number, BMW hardware and software identifiers, processor when reliably identified, installed KT200II version, requested operation and intended connection mode.

Compare those identifiers with the live software entry, not with a cropped photograph or a forum headline. If the entry requires an accessory, adapter or method that is not present, the case does not fill the gap. If the software presents multiple similar entries, do not choose by vehicle name alone. Ask support to confirm the complete ID set.

Technician comparing a deliberately unreadable ECU label with generic identification fields, a conceptual illustration and not a test photo, product-identification reference or wiring reference.
Conceptual illustration, not a test photo or identification reference: verify the complete ECU label and current software entry rather than relying on the family name.

The reported F30 320iED/N13 combination is useful because it narrows the context. It is not evidence for every F30 engine, every BMW using an MEVD17-family ECU or every controller in a similar aluminum housing. Likewise, the separate review increases confidence that another user encountered a workable bench path, but the review does not publish enough identifiers to establish that it matches the ECU in front of you.

Plan the bench job without treating the article as wiring data

  1. Confirm authorization. Record the customer and job authorization before accessing the controller.
  2. Preserve identification. Photograph the full label and save any diagnostic or protocol ID before opening a programming session.
  3. Check the current entry. Verify ECU, processor, operation and bench mode in the installed KT200II version. Support lists and drivers can change.
  4. Use only the current in-software diagram. Do not wire from this article, the conceptual images or an older seller photograph.
  5. Prepare stable power. Use appropriate regulated workshop power and record the setup without inventing a universal voltage or current value.
  6. Understand the read. Confirm whether the selected operation returns calibration, selected memories or a recovery-capable backup.
  7. Preserve every original file. Keep untouched copies with filenames, byte sizes, dates and hashes before any authorized calibration work.

A successful checksum message is one integrity check inside a workflow. It does not prove that a calibration is appropriate, emissions-compliant, safe for the engine, matched to the vehicle or recoverable after interruption. It also does not turn a seller report into an ECUToolStore test.

Stop conditions protect the ECU and the evidence

Stop before connection if the label is unreadable, the physical ECU does not match the selected entry, the hardware/software identifiers conflict, the installed software does not show the required operation, the current diagram is unavailable, power is unstable or the required adapter cannot be confirmed. Do not substitute a diagram for another MEVD17 variant.

Stop during preparation if exposed conductors, damaged connectors, uncertain grounds or ambiguous bench terminals remain. Once an operation starts, do not disconnect because it takes longer than the seller's example. If communication fails or a write is interrupted, preserve the exact message, progress point, files, software version and unchanged setup, then request controller-specific support. Random movement between OBD, bench and boot removes useful evidence and can increase risk.

Generic sealed ECU, regulated bench supply and organized evidence notes prepared before programming, a conceptual illustration and not a test photo, product-identification reference or wiring reference.
Conceptual illustration, not a wiring or product-identification reference: confirm current support, stable power and backup scope before an authorized bench operation.

What to send support before booking the vehicle

A useful verification request includes clear ECU label photographs, vehicle and engine details, saved ECU identification, KT200II edition and software version, the exact operation requested, intended mode and available accessories. State that the request concerns MEVD17.2.5 but do not stop there. Ask support to confirm the precise software entry and whether the proposed read is sufficient for the planned work and recovery strategy.

Keep the reply with the job record and re-check it if the software changes. A confirmation tied to one label, version and date should not be silently reused for another ECU. For another example of why family names and modes must be separated, see the BMW EDC17CP06 bench-versus-OBD guide. The KT200II master guide covers broader setup and support boundaries. Check the current KT200II product page for store configuration details.

Frequently asked questions

Does the reported F30 case guarantee my BMW MEVD17.2.5?

No. It confirms only that a seller reported one F30 320iED/N13/MEVD17.2.5/TC1797 bench case. Your ECU still needs exact label, identifier, software-version and mode verification.

Does “checksum OK” mean a modified file is safe?

No. Checksum completion does not validate calibration quality, vehicle matching, emissions legality, operating safety or the available recovery path.

Can I use the case photographs as a wiring reference?

No. Use only the current diagram for the exact ECU entry in the installed software or written case-specific support. The images in this article are conceptual and are not pinout evidence.

Commercial disclosure: ECU Tool Store sells KT200II products and may benefit from related purchases. The cited vehicle result comes from seller-controlled pages, not an independent test performed for this article.

Safe-use boundary: Work only on vehicles and ECUs you are authorized to service. This article does not support emissions defeat, odometer alteration, immobilizer bypass, theft enablement or unauthorized access.

Sources checked 16 September 2026
