KT200II ‘Wait Internet Connection’: What It Means and What to Check
Prepared and checked: 2 September 2026
Scope: Non-destructive troubleshooting for a KT200II Offline Workstation message that says “Wait Internet Connection.” This article does not provide license bypasses, unknown file replacements, ECU recovery instructions or fixed wiring information.
Editorial responsibility: Prepared by the ECU Tool Store editorial team from current public product information and seller-hosted support reports. ECU Tool Store did not independently reproduce every error path described here.
Short answer: “Offline” does not mean every KT200II function is independent of a network. The current ECUToolStore product information says a virtual read still needs internet access to download its server file and directs users to complete the first update activation after installation. Separately, a missing or incomplete local-workstation component is a diagnostic possibility—not a confirmed cause of this message. Before reinstalling anything, record the exact operation, software edition and version, hardware edition, dongles present and the point at which the message appears. That evidence usually separates a normal network-dependent step from a setup or authorization problem.
Evidence boundary: A public ECUHELP support note reports one user seeing the message after ID read and pressing Read, then recommends copying Offline Workstation files into both online and offline user folders. That is seller guidance for a reported case, not an ECUToolStore test or a universal fix. Folder names and software branches can change, so do not copy or overwrite files until current support confirms the exact source and destination for your installation.
Why an offline workstation can still ask for internet
The useful question is not “Is my dongle offline?” but “What is this operation trying to obtain?” ECUToolStore’s current dongle page says virtual reading still uses the internet to download a file from a server. The same page describes real reads in supported modes as offline-capable and states that the dongle works with the KT200II Full version, not the Auto version. Those are current product claims; they are not a guarantee for every ECU, software build or protocol.
| Situation | Why a connection may appear | First evidence to collect |
|---|---|---|
| Virtual read (VR) | The requested file may be retrieved from a server rather than read from the controller | Selected driver, operation name and message timing |
| First activation or license refresh | The authorized software may need to validate the device or dongle | Edition, dongle identity and activation screen |
| Offline service not installed correctly | The application may be waiting for a local component that is missing or not running | Installer source, install order, free disk space and software path |
| Wrong edition or mixed folders | Auto, Full, online and offline files may not be interchangeable | Main-unit edition, software title/version and folder screenshots |
| Network path problem | DNS, router, hotspot, firewall or provider routing may block a required check | Timestamp, network type and result on one alternate connection |
A safe diagnostic order
1. Stop before changing the installation
If no ECU operation has started, close the application normally and disconnect the programmer from the vehicle or bench harness. If a read or write is already active, do not use this general checklist: preserve the screen and follow the live recovery instruction from the authorized provider. A routine network test is not a recovery plan for an interrupted programming job.
Capture the exact wording, local time, software title and version, Windows edition, main-unit edition, connected dongles and the sequence that produced the message. “It fails offline” is too broad for support; “ID completed, VR Read selected, message appeared before file transfer” is actionable.
2. Identify the operation: VR or real read
Look at the selected function rather than assuming the meaning of the Read button. A virtual read requests a known file associated with the identified software version. A real read obtains data from the controller through the supported communication method. If the selected operation is VR, an internet prompt may reflect the documented server dependency rather than a broken offline dongle.
Do not substitute one mode for another simply to avoid the prompt. OBD, Bench and Boot are not interchangeable convenience settings; the correct method depends on the exact ECU family, hardware revision, software support and authorized procedure.
3. Confirm edition and dongle fit

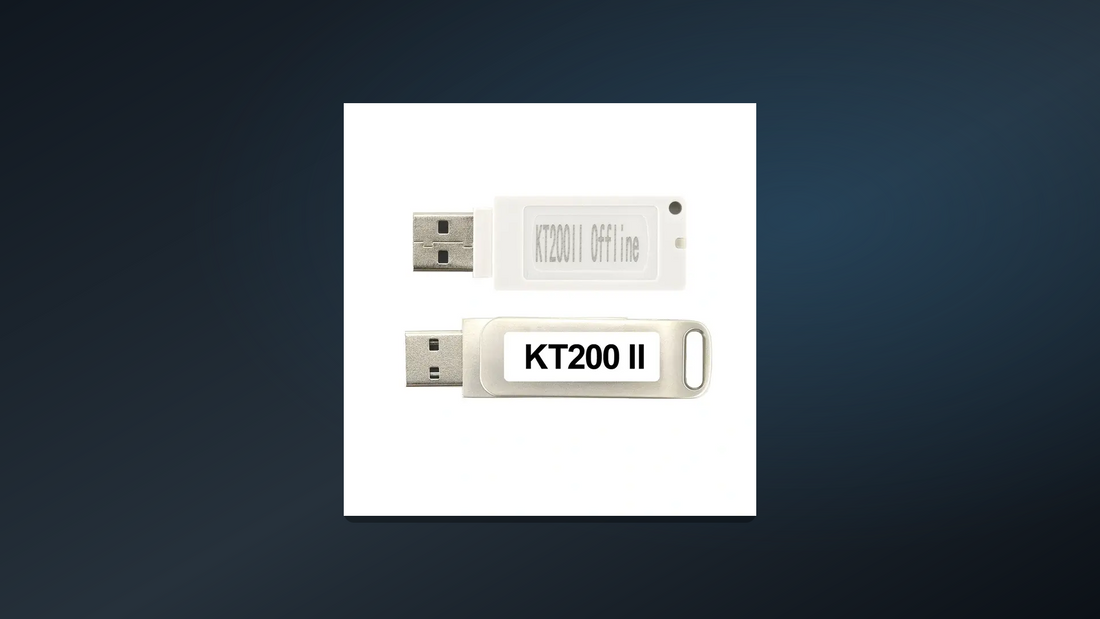

The current ECUToolStore product page states that the Offline Workstation dongle is for KT200II Full hardware and does not convert an Auto version into Full. Photograph the unit label and both sides of each USB dongle for private support review. Do not infer edition from enclosure color alone, and do not publish serial numbers in a forum or comment.
If the tool was upgraded from an earlier KT200 or another branch, ask support to verify activation and hardware eligibility against the unit identity. An offline license file or dongle from another device should never be copied as a test.
4. Verify the installation without broad security changes
Confirm that the offline package came from the authorized source, that required local components were installed in the documented order and that the system drive has the free space specified by the current installer. Record the installed paths before changing them. If support asks you to copy files, request the exact package version, source folder, destination folder and whether existing files should be backed up or replaced.
Do not permanently disable Windows Defender, exclude the entire system drive, download DLL files from a search result or delete a file because a forum post mentions a similar symptom. Microsoft states that every Defender exclusion creates a protection gap and should be used sparingly for a specific compatibility problem. If authorized support confirms that an exclusion is necessary, use the narrowest file, folder or process scope permitted by the workshop security policy, record why it was added and review or remove it after the controlled test. Those safeguards avoid turning an application symptom into a broader malware and supportability risk.
5. Test one controlled network change
When the operation genuinely requires a connection, verify automatic date and time, then test one known working network path. An alternate hotspot can help distinguish local-router or provider routing from an application problem. Record whether the error wording or timing changes. Avoid repeated VPN switching unless the authorized provider specifically requires a supported region or route; unexplained network changes make the ticket harder to reproduce.
When to stop and contact support
Stop changing the workstation when the edition cannot be confirmed, activation fails on two known working networks, the software package is not clearly tied to the hardware, security software reports a specific threat, the local service cannot be verified, or the message occurs during an active ECU job. Repeated reinstalls without a controlled record can erase the evidence that support needs.
A useful ticket should include:
- exact error text and timestamp;
- software edition, version and authorized download source;
- main-unit edition and privately supplied identity information;
- dongles connected during the test;
- selected ECU driver and whether the operation was ID, VR or real read;
- Windows edition, free disk space and installation paths;
- network type and the result of one alternate-network test;
- screenshots before any file replacement, with customer data redacted.
Four practical questions
Does this message prove that the offline dongle is defective?
No. The message can appear because the selected function still needs a server, because activation is pending, or because the local workstation components are incomplete. Hardware failure becomes more plausible only after edition, activation, installation and operation type have been verified.
Should I copy the offline folder into every KT200II directory?
Not blindly. A seller page suggests a two-folder copy for one reported case, but that does not establish the correct paths for every release. Ask current support to confirm the package version and exact folders, back up the existing installation record and change only one controlled condition.
Can I use a VPN to clear “Wait Internet Connection”?
Do not treat a VPN as a universal fix. First record the original network and error timing, then test one normal alternate connection. Use a VPN only when the authorized provider confirms that the current service requires a supported region or route; otherwise it can hide the original cause and make support evidence less useful.
Will the Offline Workstation dongle make the Auto version work offline?
No. The current ECUToolStore product information states that the Offline Workstation dongle is intended for compatible KT200II Full hardware and does not convert an Auto version into Full. Confirm the main-unit edition and current license with support before buying or installing an offline package.
Commercial disclosure: ECU Tool Store sells KT200II products and may benefit from related purchases. Product descriptions and seller-hosted cases are planning evidence, not a guarantee that a specific operation, ECU or workstation will behave the same way.
Check the current KT200II Offline Workstation dongle page, compare editions in the KT200II Auto, Full and Offline guide, and use the broader setup and troubleshooting guide for related preparation checks.
