KT200II Offline with Renault EDC17C42: What to Verify Before a Bench Job

A seller case reports that KT200II Offline read and wrote a Renault-family Bosch EDC17C42 with a TC1767 processor in Bench mode. That is useful evidence for one configuration, but it is not permission to select the same driver for every controller carrying an EDC17C42 or TC1767 description. Before starting, match the ECU label and software IDs to the current licensed support entry, confirm the Offline software environment, preserve an untouched original read, and obtain the exact connection instructions for the hardware revision. If the identity, driver, file structure or recovery route is uncertain, stop before writing.

This guide translates a narrow report into a practical job plan for authorized repair and lawful calibration work. It deliberately omits pin assignments and fixed electrical values because those details must come from the current software documentation for the exact ECU.

What does the published KT200II case actually report?

The ECUHELPshop EDC17C42 case names KT200II Offline, Bench Tricore, Renault or Nissan, TC1767 and EDC17C42. The page reports read and write success and also mentions a Boot-mode context for certain Opel and Renault variants. It does not identify a vehicle year, full hardware number, software number, application build, file sizes, measured time or final post-write vehicle checks.

The right conclusion is modest: the report is a lead for compatibility checking. It is not a substitute for identifying the controller on the bench or for checking the current software database.

Why is the processor name not enough?

A workshop may receive an ECU described only as “EDC17C42 TC1767.” That description narrows the family, but it does not establish the vehicle application, hardware revision, internal software, protection state or the correct read/write path. Similar external cases can contain different software histories, replacement units or prior repairs.

Start with the physical label and tool identification

Record the complete label before cleaning or handling the ECU. Capture the manufacturer number, hardware number, software number and any relevant vehicle information. Then compare those details with the identification returned by the current licensed KT200II software. A mismatch is a reason to investigate, not a detail to work around.

Separate reported compatibility from your job

The seller page names Renault and Nissan in its driver path, while also mentioning an Opel/Renault Boot option. That mix is exactly why the current support entry matters. Do not infer that Bench and Boot are interchangeable or that a driver for one vehicle family applies to another controller with the same processor.

How should an Offline workstation be prepared?

An Offline environment is valuable only when its software, files and records are controlled. Treat the programming computer as part of the toolchain, not as a general-purpose laptop.

• Record the KT200II application and database version before the job.
• Confirm that the required driver appears in the installed Offline environment.
• Use only supplier-authorized installers and updates.
• Keep the workstation free from unrelated tuning files and old customer folders.
• Verify that storage has enough space for original reads, working copies and logs.
• Set a job folder with clear stages: identification, original, working, returned and final.
• Do not disable security controls permanently as a shortcut; resolve software conflicts with the authorized supplier.

For broader background on programmer modes, see the ECU programmer fundamentals guide. The KT200II Bench-mode overview helps place an ECU-specific job inside a wider workshop process.

A bench-job workflow that protects the original

1. Confirm authorization and job scope. State whether the work is backup, repair, software restoration or lawful calibration. Record emissions, warranty and customer-approval limits.
2. Identify the ECU completely. Photograph the label for the job record and capture the IDs returned by the tool. Remove private vehicle and customer data from any external support request.
3. Match the current driver. Compare the label, processor context, vehicle family and operation with the current licensed support entry. Do not rely on a screenshot from an older article.
4. Retrieve the exact connection document. Use the diagram presented by the installed software or authorized support for this hardware revision. Never transfer pin positions from another EDC17 unit.

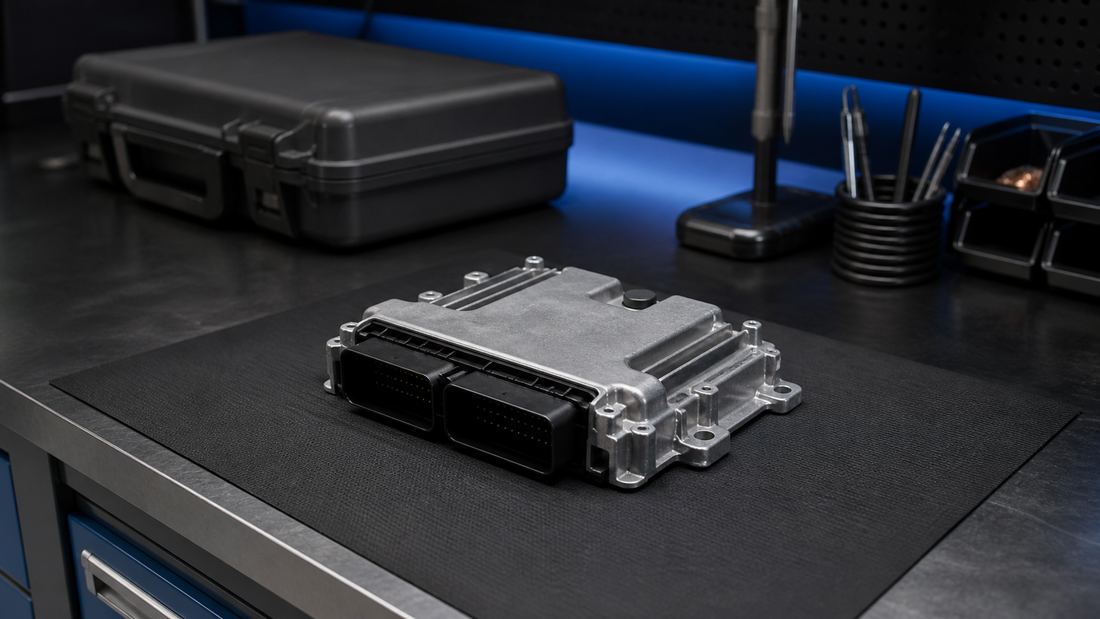

5. Prepare a stable work area. Secure the ECU, protect connectors, isolate the bench from accidental movement and use workshop-grade power support that follows the tool and ECU documentation.
6. Read identification before memory. Save the identification result and check it against the job card. Stop if the controller reports an unexpected family or software state.
7. Create the original read. Save the first successful extraction without editing it. Make two backups and calculate a file digest. NIST’s Secure Hash Standard explains how digests detect change; a digest identifies a file version but does not prove compatibility.
8. Repeat only when justified. If the software supports a non-destructive repeat read, compare size and hash results. Inconsistent reads are a stop condition, not a reason to choose the file that looks convenient.
9. Work on a duplicate. Keep the original read-only. Record the editor, file source, requested change and returned filename. Do not combine files from different jobs.
10. Validate the write plan. Confirm recognition, file size, checksum handling and recovery route with the tool’s current instructions before initiating a write.

What should make the technician stop?

Stop before writing when any of these conditions appears:

• the label and software identification do not agree;
• the driver path is selected only because the processor name looks similar;
• the current Offline database does not contain the exact entry;
• the original read is missing, inconsistent or mixed with another job;
• the modified file has an unexplained size or provenance gap;
• the connection diagram is not verified for the hardware revision;
• the ECU has visible damage, corrosion or a prior repair that changes the risk;
• there is no documented recovery path;
• the proposed task would bypass security, anti-theft or emissions requirements.

What belongs in the job record?

A compact record should allow another qualified technician to reconstruct the sequence without guessing. Include vehicle application, ECU label photos, hardware and software IDs, tool version, selected driver, operation mode, connection-document revision, original and working filenames, byte sizes, hashes, timestamps, editing history, error screenshots and post-write results.

Do not treat the job record as a place to store every unrelated customer file. Apply access control, retention rules and privacy limits. If support is needed, send only the evidence required for that ECU and remove customer-identifying information.

How should the result be checked after a write?

A completed progress bar is only one signal. Reconnect according to the documented sequence, read the ECU identification again, run relevant diagnostics and confirm the authorized repair objective. Check for new communication faults or warnings. If the ECU is installed in a vehicle, confirm that the vehicle state is suitable for testing and that any required relearn or OEM procedure is completed using legitimate access.

Record what was checked and what was not. A successful Bench operation does not prove that every vehicle system is correct, and it does not validate an unrelated calibration.

Frequently asked questions

Does KT200II Offline support every Renault EDC17C42?

The source reports one Renault-family EDC17C42 TC1767 Bench case. It does not publish enough identifiers to cover every hardware and software revision. Confirm the exact label and current support entry before accepting the job.

Can I use the Nissan driver for a Renault ECU?

Only when the current licensed software identifies that exact path for the controller. The seller report groups Renault and Nissan in its menu description, but a workshop should not select a brand path solely from that article.

Should I choose Bench or Boot mode?

Use the mode supported for the exact ECU revision and task. The source mentions Bench success and a separate Boot context; it does not establish that the modes are interchangeable. Boot work may require opening and additional preparation.

What accessories are required?

The report mentions a multifunction-cable connection but does not provide a version-specific package list. Check the installed software and supplier documentation. Do not assume every cable shown in a product photo is included or correct for this ECU.

Can a matching file size prove the modified file is safe?

No. Size is only one check. The file must trace back to the exact original, remain in the expected format and be recognized by the selected operation. Hashes show change, not suitability or legality.

Is an Offline workstation automatically safer than an online workflow?

No. Offline operation can reduce some dependencies, but safety still depends on controlled software, correct drivers, file provenance, stable preparation, authorized work and a recovery plan. An outdated or disorganized Offline system can create its own risks.

Conclusion

The Renault EDC17C42 report is useful because it identifies a plausible KT200II Offline Bench path, but the real workshop decision begins with the ECU in front of you. Match its full identity, preserve the first read, control the Offline environment and stop when the evidence chain breaks. Before scheduling a similar job, send the label and software IDs to the authorized supplier for a current compatibility check.
