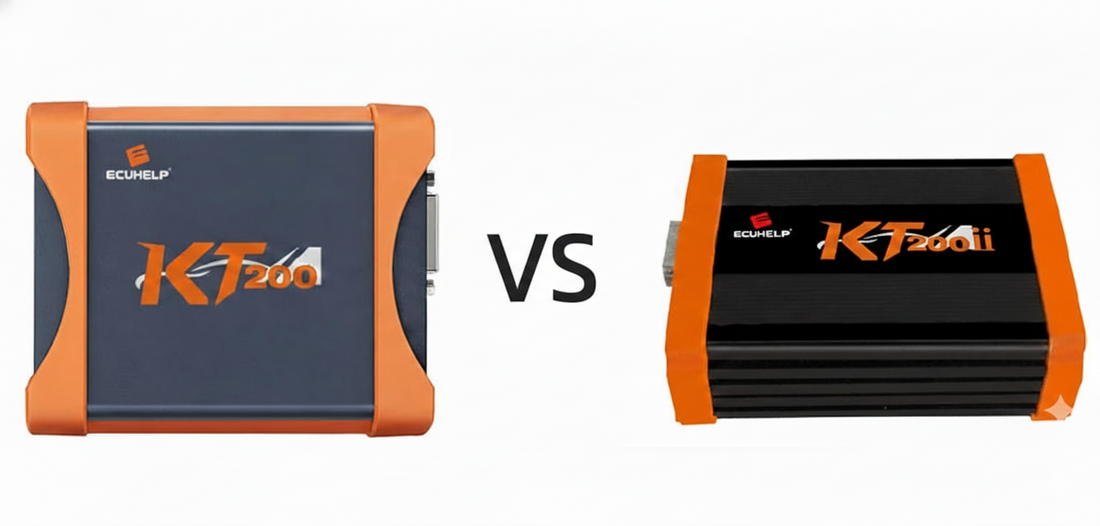

KT200 vs KT200II: What’s the Difference and Which One Should You Buy?

What They Share

Both tools do the same core job on the ECUs they support.

l KT200II reads and writes everything the original KT200 can.

l The host hardware accepts original KT200 cables and adapters — no need to replace everything.

l Four versions exist for both: Auto (car/truck focus), Full (adds tractor/boat/motorbike), Full + offline dongle, Full + offline dongle + HTprog clone adapter.

l Server connection required for online mode; no locking issues like some competitors.

l Runs on Windows 7 to 11, i5/i7 processor, at least 8GB RAM recommended.

You keep your accessories. You keep the basic workflow. That’s why many owners upgrade instead of switching brands.





Where KT200II Pulls Ahead

The differences matter when you hit a job the old tool struggles with.

Here’s the side-by-side on the main points.





Feature	KT200	KT200II (2026)	Real Impact on Work
ECU/TCU Protocol Coverage	Good for pre-2020, gaps on newer Bosch/Delco/Delphi	Adds Delco full systems (Opel/Chevrolet/GM), Bosch TCU full, Marelli 8GMC full, Delphi DCM7.24 OBD, Siemens SIM2K-305 Boot, MG1CA007 Bench, more John Deere/Bosch EDC17 variants	Handles 2020+ cars, modern diesels, ag equipment without workarounds
Checksum Calculation	Auto often wrong; manual fix needed in WinOLS/DaVinci	Fixed auto checksum — reads/writes clean, faster	Saves hours, cuts brick risk on Tricore/Bosch
Tricore Clone	Not automated	New auto Tricore Clone with OTP zone + password	Clones protected units quicker, less error-prone
OBD Stability	Can drop or fail on some ECUs	Much more reliable OBD sessions	Bench less often needed; faster daily jobs
Safety & Error Handling	Basic warnings	Immediate prompt on wrong operations, stronger ECU protection	Fewer damaged ECUs in busy shops
Server & Virtual Files	Standard access, fewer VR files	Optimized server speed, many new virtual files added	Quicker file pulls, better virtual read support
Read/Write Speed	Standard	Hardware tweaks — up to 30% faster on large maps	Shorter bench time, higher shop throughput
Future Updates	Limited new protocols	Active additions (2026 still getting new ECUs)	Stays useful longer on emerging models
Price Range (approx 2026)	$550–680 base	$680–820+ (Full offline around $815 discounted)	Higher upfront, pays back via fewer failed jobs



Protocol Expansion

This is where KT200II pulls away most. Older KT200 misses reliable support for many post-2020 ECUs. KT200II adds full systems for Delco in Opel, Chevrolet, GM lines. It covers Bosch TCU on recent transmissions cleanly. Marelli 8GMC full driver is there. Specific wins include OBD read/write on DELPHI DCM7.24 (KT200 struggles or can't do it), Bench modes for MG1CA007 and TRW EMS2.4, plus variants like Bosch EDC17 C11 for Nissan/Opel/Renault and MD1CS069 for John Deere. If your work hits newer diesels or ag equipment, these additions open up jobs the old tool can't touch.



Checksum Fix

Checksum issues were a daily headache on KT200. Auto calculation often went wrong, forcing manual correction in tools like WinOLS after almost every read. KT200II fixes that completely. You read, write, and move on — no extra steps, no risk of mismatched data. Shops report saving serious time and avoiding comebacks from bad flashes.



Tricore Clone Automation

KT200 had no built-in auto clone for Tricore units. KT200II adds it. It handles OTP zone adaptation and password automatically on supported Infineon control units. Cloning protected ECUs becomes quicker and less error-prone — a real edge when you're swapping or repairing.



Safety, Stability, and Server Improvements

KT200II prompts right away if you make a wrong move, with better ECU protection overall. OBD runs steadier, fewer drops. Server access is faster, and more virtual files are available for tricky reads. Hardware tweaks make large maps process quicker.



Offline Workstation Friendliness

Both support offline dongle versions, but KT200II handles multi-PC setups better — no constant time changes or restrictions. It's more practical for teams or backup machines.

The gaps add up. KT200II turns frustrating jobs into routine ones.



Which One Should You Buy in 2026?

If your shop mostly sees pre-2020 cars and light trucks, and you already own KT200 with good accessories, stick with it for now. The price difference was $200–300 last year, and it still works fine on older stuff.

But most serious tuners and repair shops have moved on.



Choose KT200II if:

l You regularly see 2020+ European/Asian vehicles or GM/Opel diesels.

l Diesel SCR/AdBlue work is growing in your area.

l You hate manual checksum corrections or unstable OBD connections.

l You want Tricore Clone without extra steps.

l You plan to keep the tool 2–3 years and need active protocol updates.





Conclusion:

KT200II fixes the frustrations that made KT200 feel dated. Faster jobs, fewer comebacks, broader coverage. In 2026 it’s the practical choice for anyone doing volume work or wanting to stay ahead of new ECUs.



Questions come up all the time in the Facebook group or MHH threads. Worth joining before you pull the trigger.
